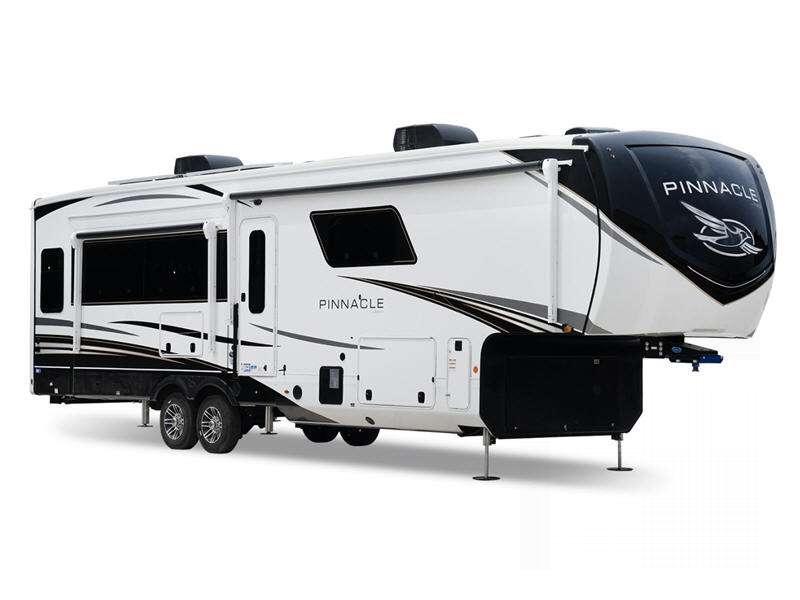

Jayco Pinnacle Fifth Wheel RVs For Sale

Previous
Next
1 of 20

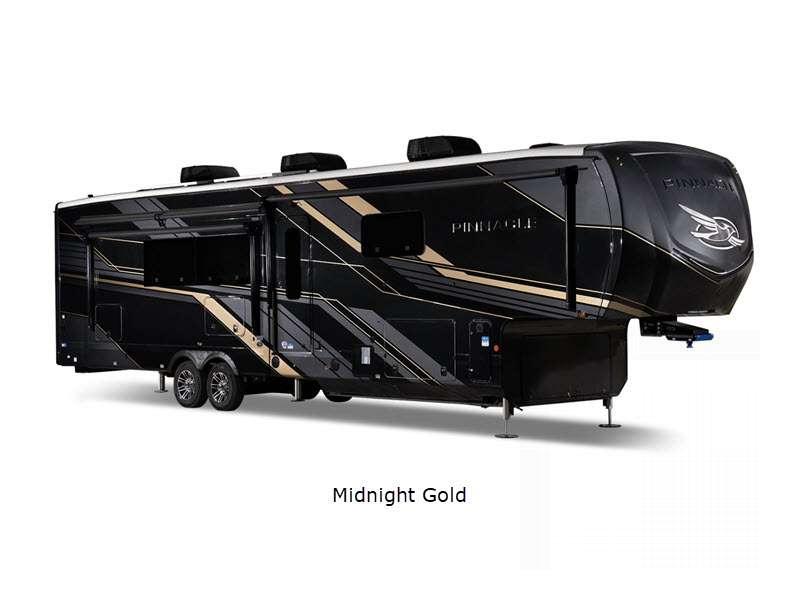

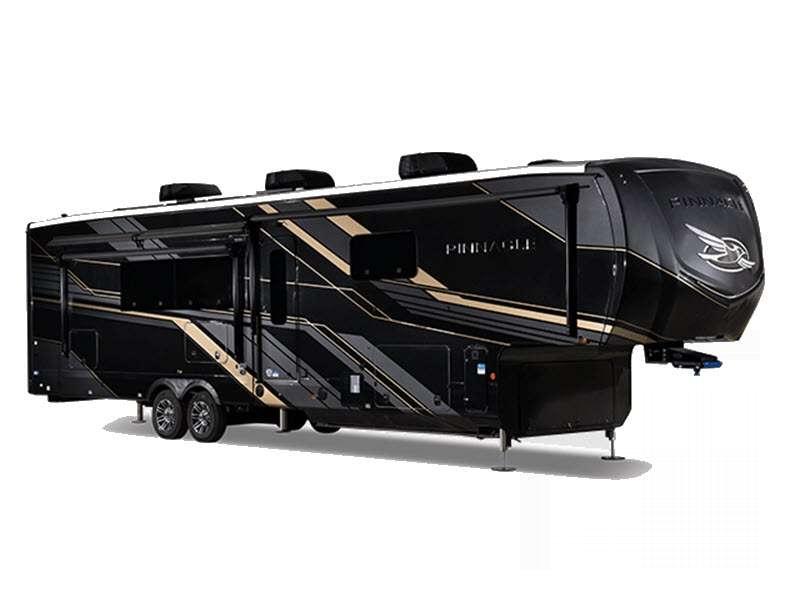

The Pinnacle fifth wheels by Jayco are setting the bar for luxury, technology features, and eye-catching exteriors! Towing is made hassle-free thanks to the 5 Star Handling Package that includes a MORryde rubber pin box, Goodyear Endurance Tires, and Dexter axles with Nev-R-Adjust brakes, so come along!

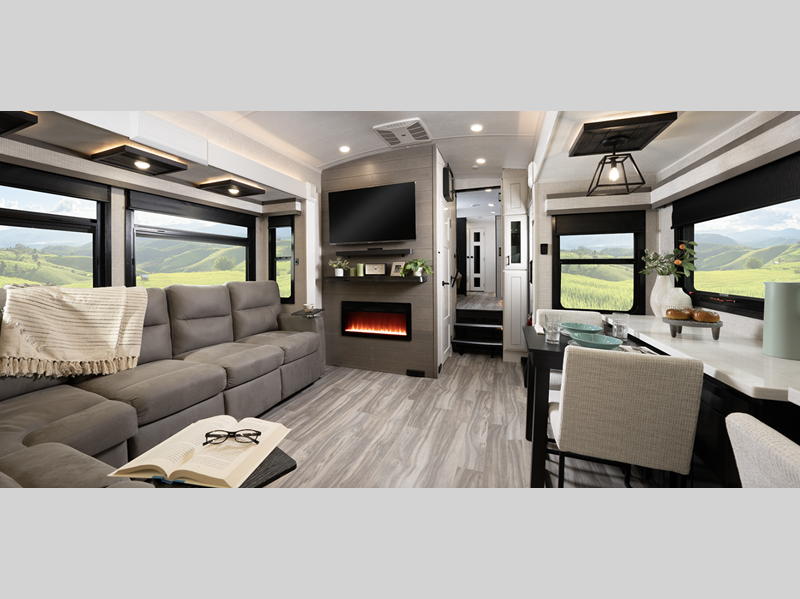

Step inside to find the ever popular Modern Farmhouse design that will go perfectly with solid hardwood maple cabinetry, vinyl flooring, and LED accent lighting above the slide outs. The Jaycommand "Smart RV" system will make setting up your fifth wheel easier than ever, plus there is a JayVoice command system to control the lighting, A/C, and furnace without even having to get off of the sofa. You will appreciate the 102" wide body construction for open living spaces, and each model includes a pass-through storage with Slam-Latch baggage doors so nothing needs to be left behind.



Comfort comes standard in a Pinnacle fifth wheel by Jayco. Choose your favorite floorplan today!



  • Specifications

    Sleeps 4
    Slides 3
    Length 40 ft 10 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 4 in
    Int Height 8 ft 6 in
    Interior Color Modern Farmhouse, Silvermist

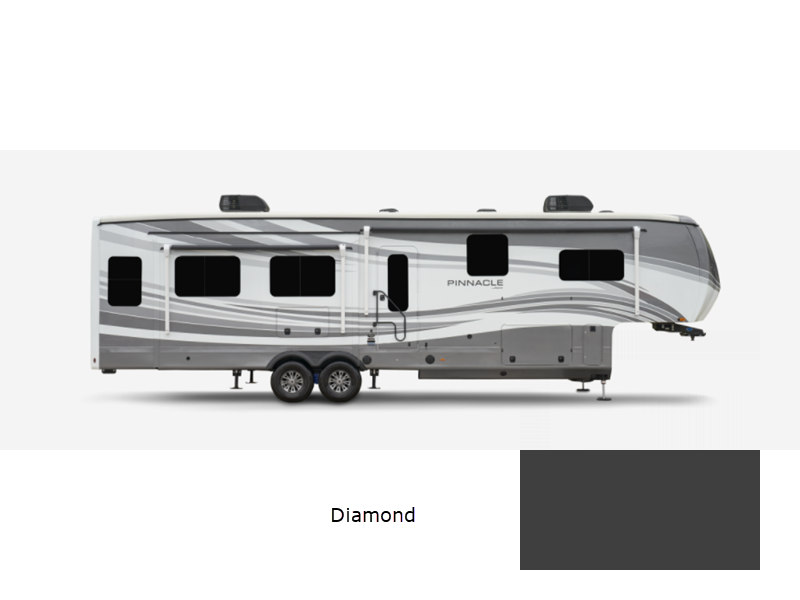

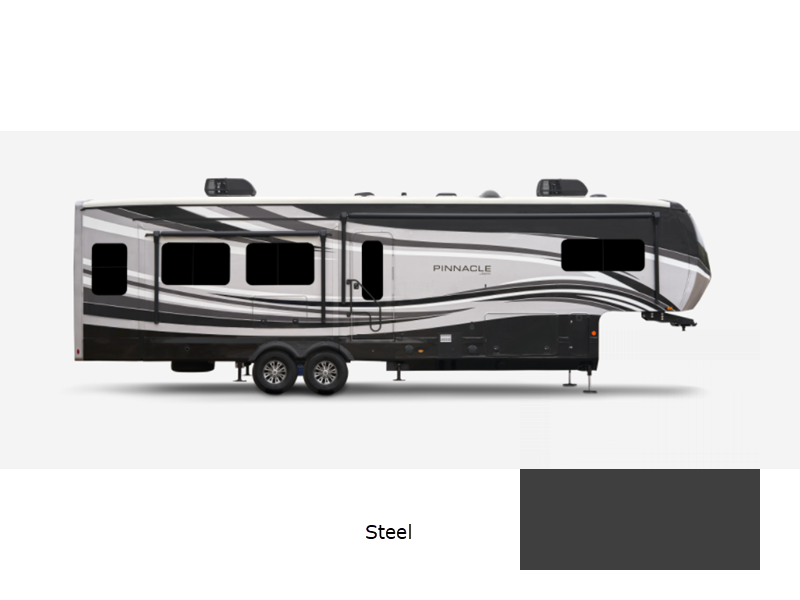

    Exterior Color Steel, Diamond, Sand
    Hitch Weight 2940 lbs
    Gross Weight 16500 lbs
    Dry Weight 13635 lbs
    Cargo Weight 2865 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 87 gals
    Black Water Capacity 87 gals
    Tire Size 16"
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential
    Cooktop Burners 3
    Number of Awnings 2
    LP Tank Capacity 30 lbs
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Smart LED HDTV, BR 32" TV, Ext. 32" TV
    Awning Info 11' and 19' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 36SSWS

    Pinnacle 36SSWS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 36SSWS highlights: Spacious Walk-In Shower Bedroom ... more about Pinnacle 36SSWS

    Specifications

    Sleeps 4
    Slides 3
    Length 40 ft
    Ext Width 8 ft 6 in
    Ext Height 13 ft 3 in
    Int Height 8 ft 6 in
    Interior Color Modern Farmhouse, Silvermist
    Exterior Color Steel, Diamond, Sand
    Hitch Weight 3075 lbs
    Gross Weight 16750 lbs
    Dry Weight 14040 lbs
    Cargo Weight 2710 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 87 gals
    Black Water Capacity 50 gals
    Tire Size 16"
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential
    Cooktop Burners 3
    Number of Awnings 2
    LP Tank Capacity 30 lbs
    Water Heater Capacity 12 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Smart LED HDTV, BR 32" TV, Ext. 32" TV
    Awning Info 10' and 19' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 32RLTS

    Pinnacle 32RLTS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 32RLTS highlights: Walk-In Shower with a Seat Kitchen ... more about Pinnacle 32RLTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 3
    Length 36 ft 6 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 4 in
    Int Height 8 ft 6 in
    Interior Color Modern Farmhouse, Silvermist
    Exterior Color Steel, Diamond, Sand
    Hitch Weight 2495 lbs
    Gross Weight 15500 lbs
    Dry Weight 12900 lbs
    Cargo Weight 2600 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 87 gals
    Black Water Capacity 50 gals
    Tire Size ST255/85R16E
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential
    Cooktop Burners 3
    Number of Awnings 2
    LP Tank Capacity 30 lbs
    Water Heater Capacity 12 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Smart LED HDTV, BR 32" TV, Ext. 32" TV
    Awning Info 10' and 16' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 36KPTS

    Pinnacle 36KPTS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 36KPTS highlights: Living Room Ceiling Fan 32" ... more about Pinnacle 36KPTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 3
    Length 41 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 4 in
    Int Height 8 ft 6 in
    Interior Color Modern Farmhouse, Silvermist
    Exterior Color Steel, Diamond, Sand
    Hitch Weight 2890 lbs
    Gross Weight 16500 lbs
    Dry Weight 13555 lbs
    Cargo Weight 2945 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 87 gals
    Black Water Capacity 50 gals
    Tire Size ST255/85R16E
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential
    Cooktop Burners 3
    Number of Awnings 2
    LP Tank Capacity 30 lbs
    Water Heater Capacity 12 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Smart LED HDTV, BR 32" TV, Ext. 32" TV
    Awning Info 11' and 17' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 37MDQS

    Pinnacle 37MDQS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 37MDQS highlights: Four Slides Residential ... more about Pinnacle 37MDQS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 4
    Length 41 ft 8 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 4 in
    Int Height 8 ft 5 in
    Interior Color Modern Farmhouse, Silvermist
    Exterior Color Steel, Diamond, Sand
    Hitch Weight 3370 lbs
    Gross Weight 16995 lbs
    Dry Weight 14445 lbs
    Cargo Weight 2550 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 87 gals
    Black Water Capacity 50 gals
    Tire Size 16"
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential
    Cooktop Burners 3
    Number of Awnings 2
    LP Tank Capacity 30 lbs
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR LED HDTV, Ext. 32" LED TV
    Awning Info 10' and 19' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 38FLGS

    Pinnacle 38FLGS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 38FLGS highlights: Spacious Rear Bath King Bed Slide ... more about Pinnacle 38FLGS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 4
    Length 44 ft 4 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 5 in
    Int Height 8 ft 6 in
    Interior Color Modern Farmhouse, Silvermist
    Exterior Color Steel, Diamond, Sand
    Hitch Weight 2965 lbs
    Gross Weight 17750 lbs
    Dry Weight 15195 lbs
    Cargo Weight 2555 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 82.5 gals
    Black Water Capacity 74 gals
    Tire Size 16"
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential
    Number of Awnings 2
    LP Tank Capacity 30 lbs
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info Kitchen 32" TV, LR 50 TV Lift, Ext. 32" LED TV
    Awning Info 14' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

Pinnacle Features:

Standard Features (2022)



Standard Exterior Equipment

  • Stronghold VBM™ aluminum framed and vacuum bond laminated gel-coated fiberglass exterior walls (including rear wall and slide room end walls)
  • Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with one piece, seamless roof and a 20 year warranty material
  • Climate Shield™ zero-degree tested weather protection
    • Fully enclosed and heated underbelly (ducted)
    • 40,000 BTU output furnace
    • Double layer fiberglass batt insulation (roof, floor, cap, and behind cap)
    • PEX plumbing
  • JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patent-pending)
  • Painted fiberglass front cap with built-in specialty LED lighting
  • Frameless, dark tinted, safety glass windows
  • Custom automotive-grade vinyl exterior graphics package
  • 102" widebody construction
  • Skirt metal enclosed drop frame
  • LED exterior lighting package
  • Dual 30 lb. propane bottles with auto regulator
  • Doorside compartment framed and vented for third propane bottle
  • Pass-through storage with Slam-latch™ baggage doors
  • Digital TV antenna with Wi-Fi extender
  • Exterior marine-grade speakers
  • Fully enclosed, LED-lit Nautilus universal docking center
    • Selectable water connections
    • Quick-connect outside shower
    • Black tank flush
    • Winterization and sanitation
    • Whole coach cable hookups
  • Water heater bypass
  • Battery disconnect
  • Under-mounted spare tire (Goodyear® Endurance® tires- Made in USA)
  • LP quick connect (outside grill prep)
  • Built in sewer hose carrier
  • 3,000 lb. tow hitch with 4-way pin
  • Inverter pre-wire to select outlets
  • 40,000 BTU furnace
  • 12V heaters on all holding tanks

Standard Interior Equipment

  • Solid hardwood slide fascia
  • Handcrafted and glazed doors, drawers and trim
  • 5/8 in. tongue and groove joined plywood floor decking
  • Vinyl flooring (Made in USA) throughout including slide rooms
  • Ceiling fan (select models)
  • LED interior lighting throughout
  • LED accent lighting above slideouts
  • Tri-fold hide-a-bed sofa with residential sleep surface (select models)
  • Dual USB charging ports throughout
  • 12V charging station
  • JayVoice voice command system - controls lighting, A/C and furnace
  • "Shoe garage" in hallway step (select models)
  • "Flip-up" table top storage next to tri-fold sofa (select models)
  • Soft close, heavy-duty, 75 lb. full extension, steel ball-bearing drawer guides
  • Toe kick night lights in bedroom, bathroom and kitchen
  • Farmhouse stainless steel kitchen sink
  • Residential-grade, pull-out kitchen faucet
  • Extra 120V power outlets in kitchen and slide rooms
  • Pull-out countertop extension with 24 in. x 24 in. butcher block bar top (select models)
  • Pull-out utility drawer under kitchen sink
  • Residential quilted bedspread and pillows

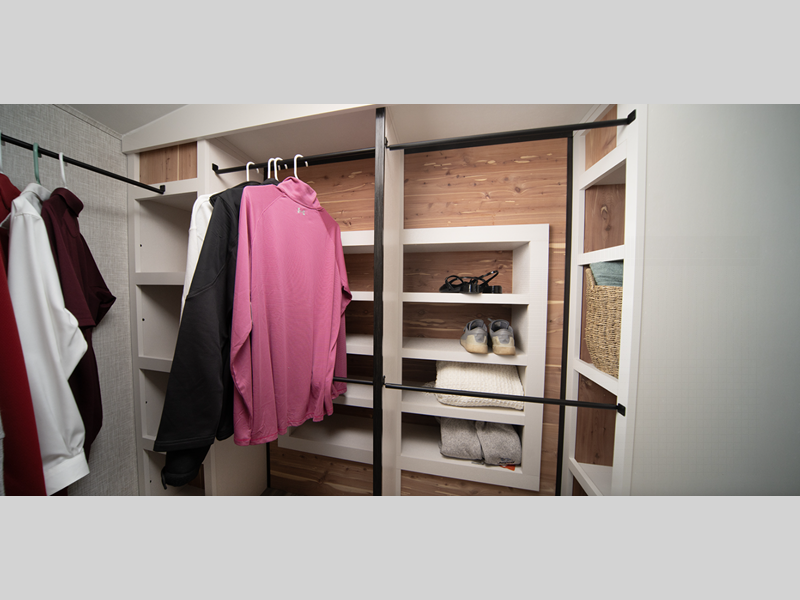

  • Cedar-lined front wardrobe closet
  • Gas-strutted under-bed storage
  • C.P.A.P. prepped bedroom
  • Carbon monoxide and LP detector
  • Flip-up hidden storage in bedroom chest of drawers
  • Built-in laundry hamper in wardrobe (select models)
  • Cup holders in bedroom nightstands (N/A 36SSWS)
  • Bathroom skylight
  • LED backlit custom framed mirror
  • Recessed vessel bowl sink in main bath
  • Porcelain toilet with foot flush

Customer Value Package (Mandatory)

  • 15,000 BTU "Whisper Quiet" A/C with heat pump (main)
  • 15,000 BTU "Whisper Quiet" A/C (bedroom)
  • Electric patio awning with integrated LED lights
  • Gas/electric DSI water heater
  • Custom machined aluminum rims
  • Keyed-Alike™ lock system (single key for all doors/locks)
  • Rooftop and ground solar prep
  • Backup and side observation camera prep
  • Hidden hinges on cabinet doors
  • Home entertainment system with subwoofer

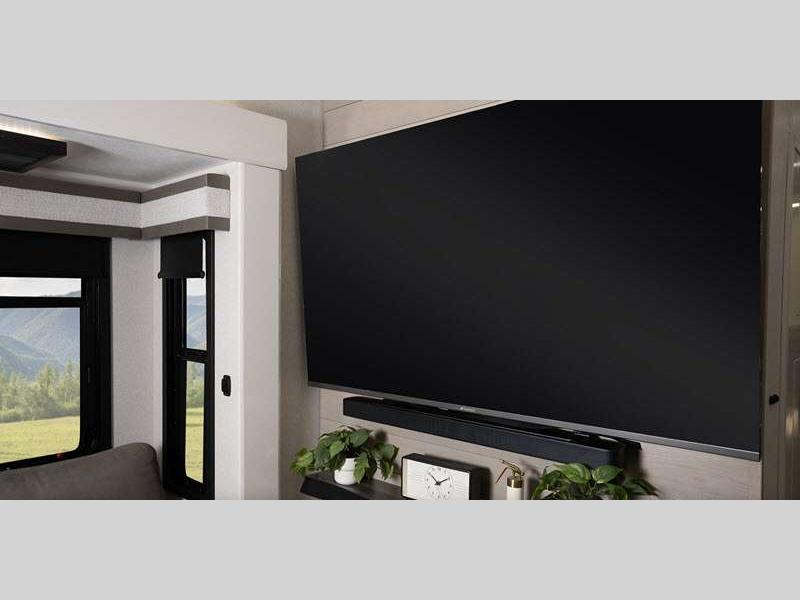

  • 50 in. SMART LED HDTV with fully digital HDMI® output
  • Wireless remote control system (includes Bluetooth® wireless interior controls)
  • Residential king (72 in. x 80 in.) mattress with under-bed storage
  • Refrigerator temperature sensors linked to JAYCOMMAND®

5-Star Handling Package

  • Goodyear® Endurance® tires (Made in USA)
  • MORryde® rubber pin box
  • Dexter® axles with Nev-R-Adjust® brakes and E-Z Lube® hubs, & 4,000 lb. leaf springs
  • MORryde® LRE-4000™ rubberized suspension
  • Wet bolt fasteners and bronze bushings

Luxury Package (Mandatory)

  • 6-point hydraulic auto-leveling system
  • MORryde® StepAbove™ entrance steps (main entrance)
  • 2nd electric patio awning with integrated LED lights
  • Powered 50-amp cord reel
  • JAYCOMMAND® “Smart RV” system
  • Cellular prep for antenna and JAYCOMMAND®
  • “Smart RV” system
  • Tire Pressure Monitoring System (TPMS)
  • High gloss gelcoated sidewalls
  • Oversized multi-battery compartment (industry leading room for 4-6 batteries)

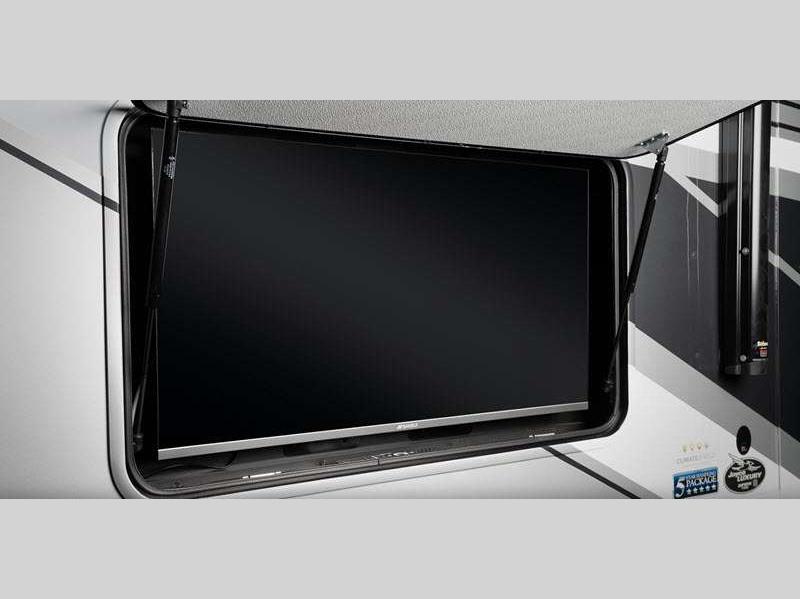

  • 32” outside LED TV
  • Hardwood cabinet stiles
  • Central vacuum system
  • Day/night roller shades in living room
  • Frameless dark tinted safety-glass windows
  • Free-standing (no pedestal) table with leaf, 2 free-standing (with under seat
  • storage) and (2) folding chairs
  • LED fireplace with electric space heater
  • Drinking Water System™ (patent-pending)
  • Residential refrigerator with 1800W pure sine wave inverter

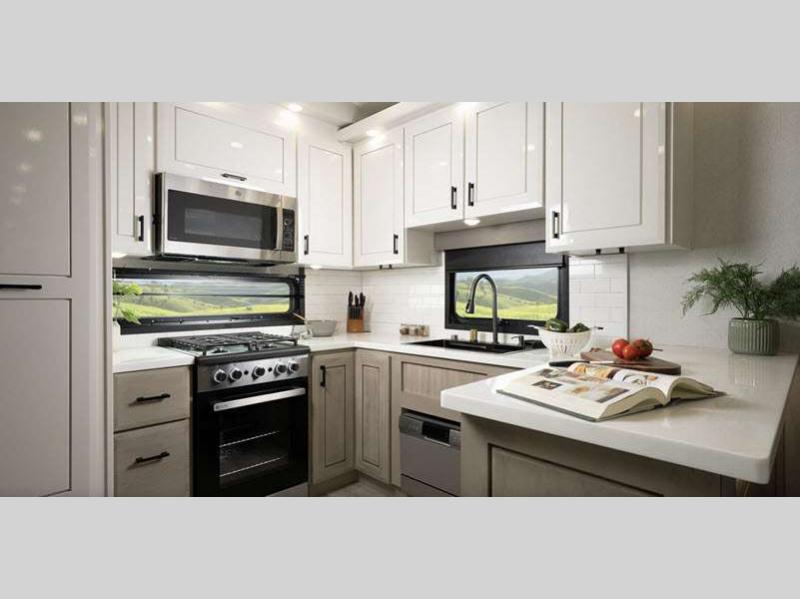

  • 30” residential microwave
  • Residential 24 in. Insignia™ stove (3.73 cu. ft. with 12K BTU high output burner)
  • Residential solid-surface kitchen countertop with solid-surface sink covers
  • 32 in. bedroom TV

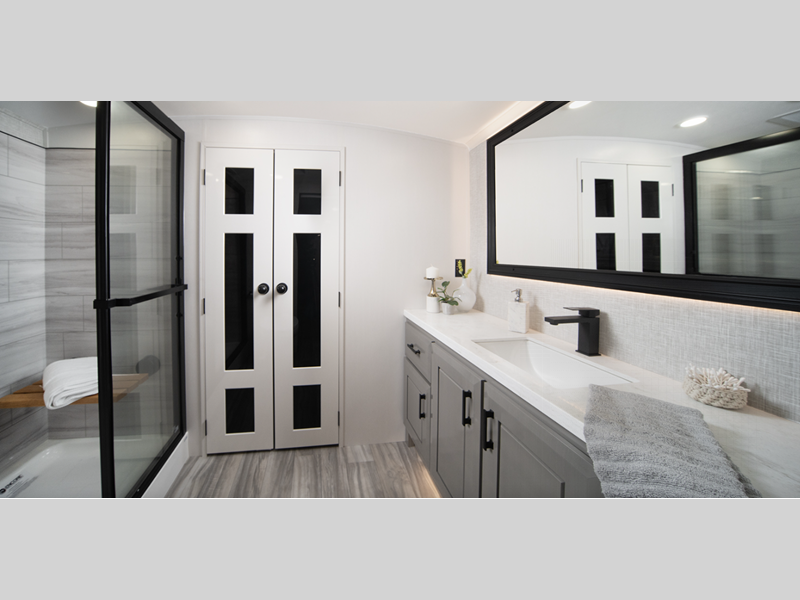

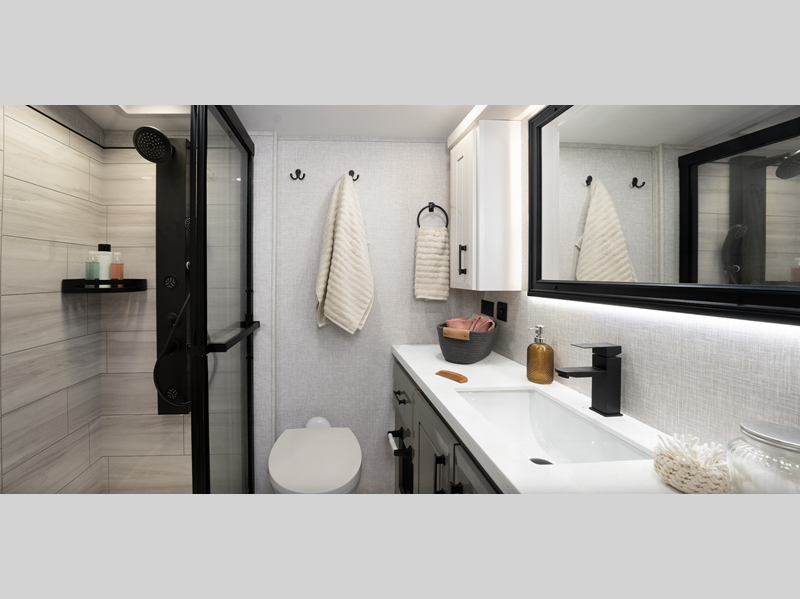

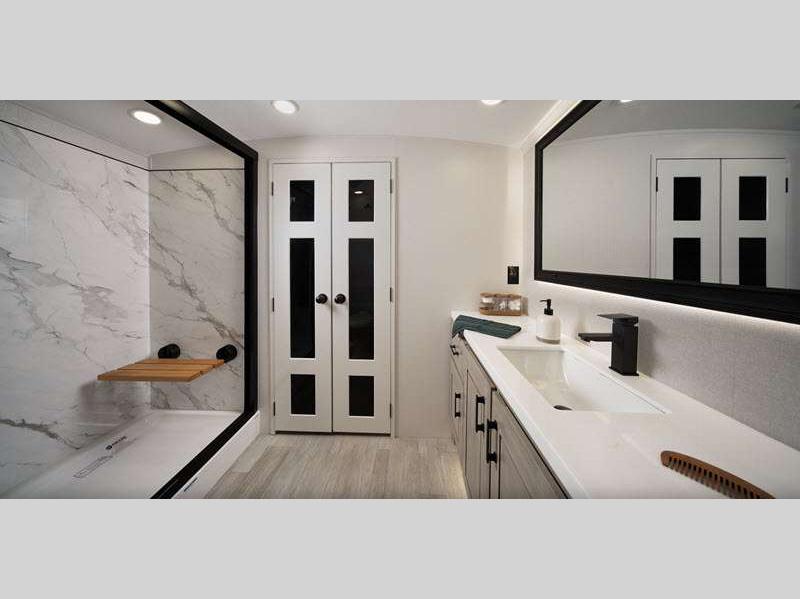

  • Residential walk-in shower with shampoo/soap holder/teak seat
  • Washer/dryer prep

Options

  • True interior design choice (Modern Farmhouse or Silver Mist)
  • Truma on-demand hot water system

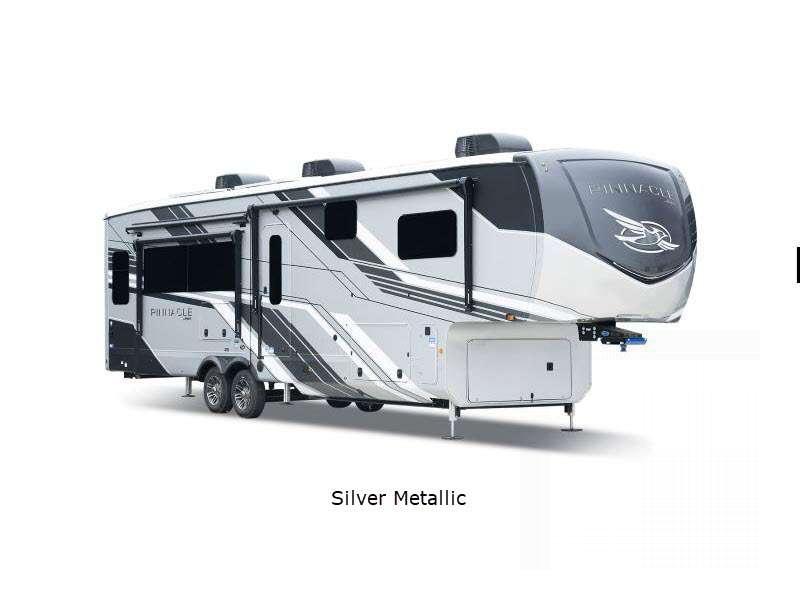

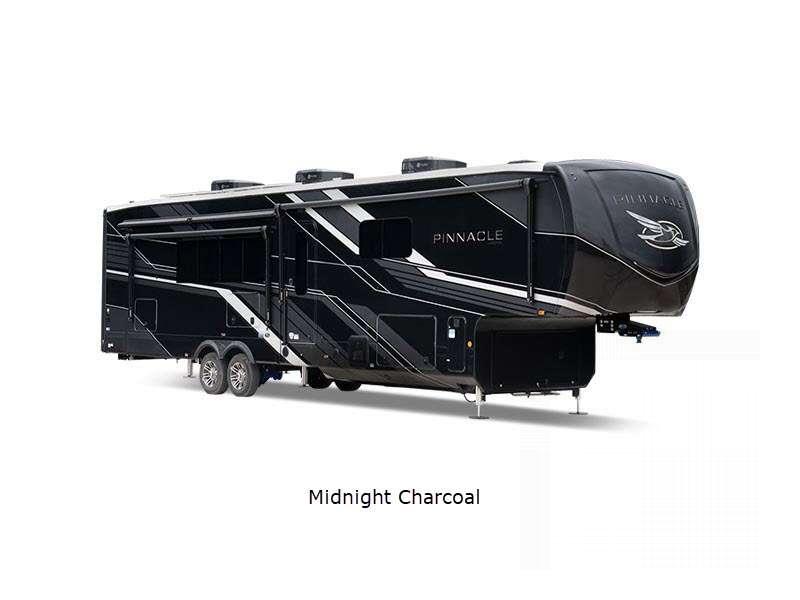

  • Full body paint- Sand, Steel and Diamond
  • Overlander II Solar Package (30 amp controller, 1,800W inverter and (2) 190 watt solar panels)
  • Wireless backup/rear and side view observation camera kit
  • Sani-Con® Turbo waste management system
  • Generator prep with 120 lb. max LP system includes (3)
  • 40lb. LP bottles
  • 5,500W Onan® Microquiet generator
  • Frameless dual-pane tinted safety-glass windows
  • Slideout awning (quantity varies by model)
  • Hydraulic disc brake package with 17.5” wheels and ‘H’ rated Goodyear® tires
  • 3rd-15,000 BTU ducted A/C
  • 18 cu. ft. Norcold® Polar Max gas/electric refrigerator

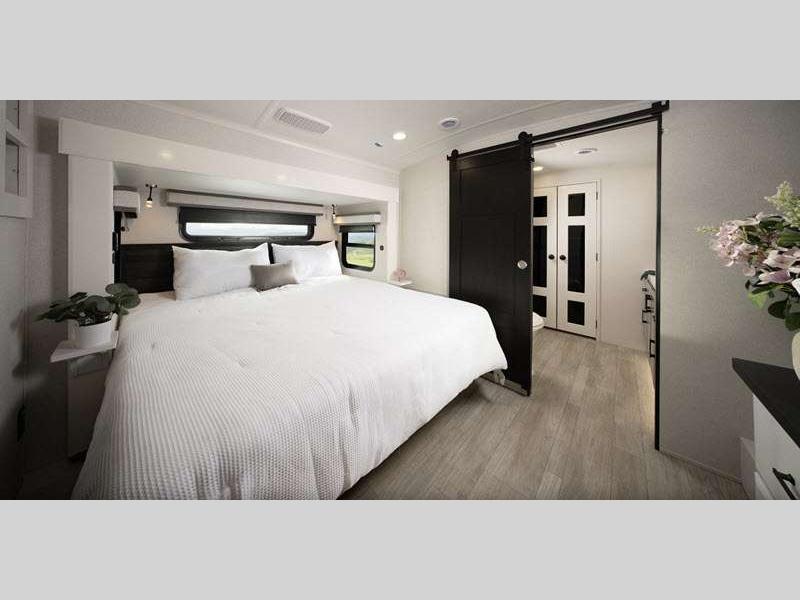

  • Queen residential foam-top mattress
  • Front wardrobe in place of front windshield and sofa lounge (36SSWS)
  • Butler’s pantry (in place of half bath, 38FLGS)
  • Outside griddle for JayPort system (32RLTS, 36FBTS, 36KPTS, 36SSWS)
  • Overlander EXT Solar Package: 3,000W inverter/charger with internal 50 amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100 amp/hour lithium batteries, 12V DC A/C, DC to DC battery charger, 100 amp MPPT controller

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.



Manu-Facts:

Jayco Logo

More than 50 years and still fun!



Peace and love were in the air—and so was entrepreneurial spirit. In 1968, Lloyd and Bertha Bontrager set out to make a family dream a reality in their quiet corner of Northern Indiana. Let the fun begin!



In the '70s, while families gathered  around the newfangled video boxes (TVs of course!), we began to make a name for ourselves too, acquiring competitors, delivering new products and selling internationally for the first time. Look out, TVs! We’ve got an idea for family time too.



Jayco was established among the powers of the RV industry in the '80s and we mourned the loss of our fearless leader, Lloyd, in a tragic plan crash. That did not stop the momentum, but instead  we doubled down on the vision for family fun.



In the '90s Jayco acquired Starcraft, one of the oldest and most respected builders of campers. Lloyd was inducted into the RV Hall of Fame.  We built and shipped our 300,000 unit in 1997, and our new corporate headquarters facility was completed in Middlebury, Indiana.



In 2002, Jayco introduced the Jay Flight travel trailers which as of today, has been the #1 selling travel trailers in North America for thirteen years straight.  In 2006, we built and shipped our 500,000th unit, and introduced the first lightweight toy hauler travel trailer built with a wider stance, known first as the Talon.  And, in 2008, we acquired assets of the former Travel Supreme and launched the Class A diesel-pusher Entegra Coach division.



Between four division of Jayco, Starcaft RV, Entegra Coach and Highland Ridge RV in May of 2016, we built and celebrated our 1,000,000the unit in total.  On July 1st of the same year, Jayco Corporation, including all of the brands of Jayco, Starcraft RV, Entegra Coach, and Highland Ridge RV, was acquired by Thor Industries.



Fast forward to the '20s, a global pandemic reawakened everyone's desire to get outside and sparked another golden age for the RVing community.  With eyes toward a bright future, Jayco, Entegra Coach, Highland Ridge and Starcraft unified as the Jayco Family of Companies.
