Used 2016 Forest River RV Wildwood Heritage Glen Hyper-Lyte 24RKHL

Travel Trailer

Stock #25005RC1

Delaware, OH

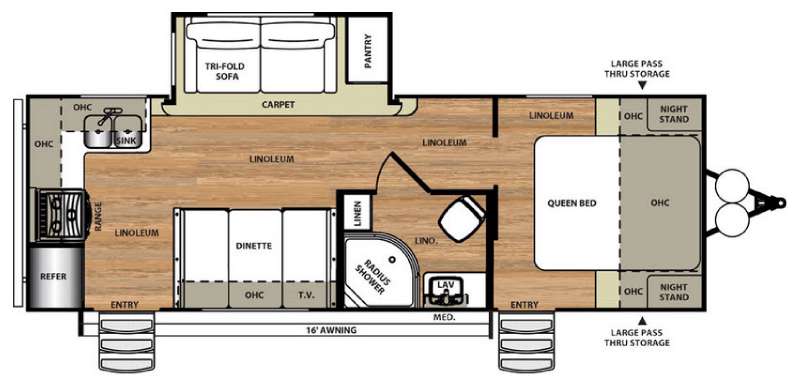

Floorplan - 2016 Forest River RV Wildwood Heritage Glen Hyper-Lyte 24RK

1 of 6

29ft long
5,363 lbs
Sleeps 5

1 slides
Two Entry/Exit Doors

Rear Kitchen

See All Specs

Specifications

Sleeps	5	Slides	1
Length	28 ft 7 in	Ext Width	8 ft
Ext Height	10 ft 8 in	Hitch Weight	585 lbs
Dry Weight	5363 lbs	Cargo Capacity	2222 lbs
Fresh Water Capacity	54 gals	Grey Water Capacity	60 gals
Black Water Capacity	30 gals	Tire Size	15"
VIN	4X4TWBZ21GU010867

Features

Standard Features (2016)

Construction/Exterior

Ultra Lube Axles w/ 15" Radial Tires & Aluminum Wheels
Aerodynamic Fiberglass Front End
Wide Track Suspension
4 Sided Aluminum-Framed Vacuum-Bonded Construction
Gel Coated Fiberglass Exterior

Laminated Sidewalls
Laminated Floor w/ In-Floor Heat
30" Smooth Fiberglass Radius Main Entry Door (26' secondary)
Swing Arm Entry Assist Handle
Extra Large Full Pass-Thru Storage (per floorplan)
One Touch Electric Awning w/ Adjustable Legs (1 year warranty)
Marine Grade Exterior Speakers w/Blue LED Light
Exterior TV Bracket w/Cable and Power Outlet
Upgraded ABS Fender Skirts
Interior Grab Handle at Entry Door
Powder Coated I-Beam Frame
Cambered Chassis
Water Heater By-Pass
Norco Cable Slide Out Systems
16 Gal. per hour G/E Quick Recovery DSI Water Heater (2 year warranty)
Stabilizer Jacks
One Piece Seamless Roof (12 Year Warranty)
Tinted Safety Glass Windows
Black Tank Flush

Kitchen

Dometic® Double Door Refrigerator (2 Year Warranty)
Residential, Double Bowl Sink
Microwave w/ Carousel (1 Year Warranty)
High Rise, Pull-Out Sprayer Faucet
Vented Range Hood w/ Light

Beau® Plank Wood Linoleum
Solid Wood Drawer Fronts w/ Full Extension Ball Bearing Guides
Solid Wood Raised Upper Panel Doors
Large Overhead Cabinets (per Floor Plan)
Wall-Mounted Systems Monitor Panel
Satin Nickel Hardware

Living Room

Satin Nickel Hardware
13,500 BTU Ducted Roof Air Conditioner w/ Quick Cool (2 Year Warranty)
Residential Stain Resistant Carpet
Rocker Recliners (Per Floorplan)
Oversized Dinette w/ Large Pot and Pan Drawers (Per Floorplan)

Deluxe Dinette Tabletop
Solid Wood Drawer Fronts
Extra Large 77" U-Dinette (Per Floorplan)
Large Dinette Picture Window
Winegard® TV Antenna
Cable TV and Satellite Prep
Decorative Dinette Light
30k BTU Suburban Forced Air DSI Furnace (2 Year Warranty) w/ Digital Thermostat
Under Floor Heat Ducting
Night Shades
Tri-Fold Hide-a-Bed Sofa w/ Storage and X-Large Throw Pillows (Most Models)
Laundry Hamper (Most Models)
32" HD TV and CD/DVD/AM/FM w/ MP3 Hookup and Surround Sound

Bedroom

Strut Lifted Storage Area Under Bed
Huge Storage Drawers in Travel Trailer Bed Base (Most Models)
Oversized Bunks (Per Floorplan)
Solid Bedroom Privacy Doors
Mirrored Wardrobes w/ Two Nightstands and Outlets (Most Models)

Bathroom

12-Volt Power Bath Roof Exhaust Vent
Huge Residential Shower w/ Glass Door Surround (Most Models)
Wooden Medicine Cabinet w/ Mirrored Door
Dometic® Foot Flush Toilet
Tooth Brush Holder and Towel Ring

Vinyl Tub Surround

Security & Safety

LP Leak Detector
Smoke Detector
Carbon Monoxide Detector
Fire Extinguisher
Welded Heavy Duty Safety Chains (Travel Trailers)

Electric Brakes (all wheels)
GFI Receptacles
ANSI 119.2
Certified to Meet National Highway Traffic Safety Administration Specifications

Options

Free-Standing Dinette w/ 4 Chairs
Whirlpool® Residential Refrigerator w/ Inverter (All Models)
15,000 BTU Ducted A/C w/ Quick Cool
Outside Shower

See us for a complete list of features and available options.

All features and specifications are subject to change.
