Used 2016 Heartland Big Country 4010 RD

Fifth Wheel

Stock #24871RA

North Ridgeville, OH

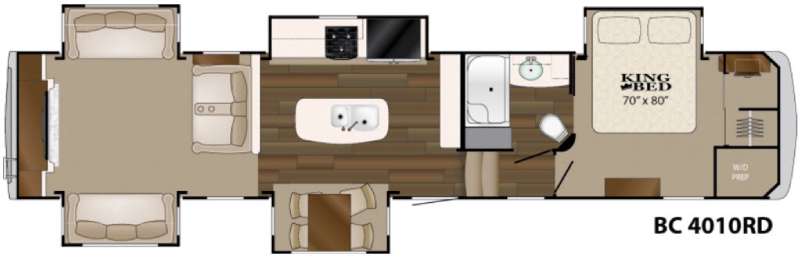

Floorplan - 2016 Heartland Big Country 4010RD

1 of 6

42ft long
13,835 lbs
Sleeps 6

5 slides
Rear Entertainment

Kitchen Island

See All Specs

Specifications

Sleeps	6	Slides	5
Length	42 ft 5 in	Ext Width	8 ft
Ext Height	13 ft 3 in	Int Height	6 ft 4 in
Hitch Weight	2265 lbs	GVWR	16000 lbs
Dry Weight	13835 lbs	Fresh Water Capacity	65 gals
Grey Water Capacity	90 gals	Black Water Capacity	45 gals
Tire Size	LT235/85R16-G	Furnace BTU	42000 btu
VIN	5SFBG4326GE301827

Description

This Big Country fifth wheel model 4010 RD offers a spacious home away from home due to its FIVE slide outs. There are dual slides in the rear entertainment center, dual slides in the kitchen, and a king bed slide in the master bedroom.

Step inside and find yourself in the Big Country kitchen where you will easily be able to prepare and enjoy dining while you travel. There is a slide out dinette with four chairs to the left of the door. Opposite the dinette there is a second slide out with a double door refrigerator, a three burner range, and counter space, plus overhead storage for dishes and things. There is also a convenient island in the center that features a double sink, plus additional storage along the interior wall both above and below the counter area.

Head up the steps in front to a side aisle bath and master bedroom. In the bath you will see a toilet, vanity with vessel bowl sink, a linen cabinet, and a spacious shower.

The master bedroom features a king bed slide out, a front wall wardrobe with nightstand inside, plus a corner closet that has been prepped for a washer and dryer if you choose to add the appliances. There is also a dresser opposite the bed with a floor to ceiling storage cabinet next to it. You can also choose to add an optional TV/DVD combo above the dresser if you wish.

Back through the kitchen area to the rear of this Big Country unit you will find a spacious living area with dual opposing slides. There is a sofa within each slide out and each includes overhead storage. Along the interior half wall that looks into the kitchen you will find theater seating for two with cup holders. A large entertainment center is found along the rear wall featuring a flat screen TV, storage, and an electric fireplace, plus so much more!

Features

Standard Features (2016)

Construction

Sidewall

High Gloss Laminated Fiberglass Sidewall w/double layer Luan
Double Welded Aircraft quality Aluminum Structure
Multilayer w/block foam Insulation
R11 Insulation
Deluxe Power Exterior Awning w/LED light

Laminated Roof Construction

5” Welded Aluminum Frame
Multilayer w/block foam Insulation
One-piece Walkable EPDM Rubber Roof
R34 Insulation
Radius Metal Roof Cap

Laminated Floor Construction

Strong 2 ½” Aluminum Framing
Multi Layer w/Block Foam Insulation
3/8” Seamless floor deck
Main Floor R38 – Upper Deck R14

Frame & Landing

12” I-Beam Drop Frame with Powder Coated Rust Prohibitive coating (10” on 3070RE and 3150RL)
Hydraulic Landing Gear Jacks
Heavy Duty Rear Stabilizer Jacks

Tires/Axles/Suspension

G-Rated 16” Tires w/Aluminum rims and leaf springs
Spare Tire and Carrier
EZ Flex Suspension system by Dexter
Correct track alignment system
2” x 12” NevRAdjust Brakes by Dexter
7,000 lb. Dexter Axles with Easy Lube Hubs

Underbelly

Seamless Corrugated Material
Heated and enclosed underbelly
Heated and insulated holding tanks and gate valves
Flex foil insulation (R14)

Interior / Kitchen

Hand crafted hardwood cabinet doors and fascia
All cabinet frames are pre-drilled and screwed together - NO Staples
Solid wood drawer bottoms
Doors and drawers have hidden hinges and stainless steel ball bearing glides throughout
Solid surface counter-top
18 cu. ft refrigerator
Deep stainless steel kitchen sink
Recessed three burner cook top with oven and solid surface covers
Residential microwave oven
Free standing dinette with four chairs
Cold crack resistant
3 speed, temperature control fan with rain sensor
LED lighting throughout

Living Room

MCP Shades Throughout
Decorative Glass Inserts in overheads
Ceiling Fan
2 Rocker Recliners (Select Models)
Flip and Fold Sleeping Sofa (Most Models)

Bedroom

Bedroom Slide out w/Under bed Storage
King Size Bed (N/A 3150RL)
Memory Foam Mattress w/Pillow Top
Walk-in Wardrobe Closet
Stackable Washer dryer closet with Louvered Doors
6’4” Bedroom Ceiling Height
32” Deep Bedroom Electric Cable Slide Room (most models)

Bath Area

Porcelain Commode w/Foot Flush
Power Roof Vent
Heat and A/C Duct
Large Medicine Cabinet
6’4” Bath ceiling height
1 piece fiberglass shower (Mega/Mini Mega where available)
Luxury glass shower surround

Plumbing

Color – Coded PlumbPLEX Water Liner w/ 10/25 year warranty
Quick and easy winterization system

Tank Size

75 gallon fresh water system
90 gallon gray
45 gallon black tank
(2) 30#LP bottles

Power

80 AMP/12V DC Power Converter
50 AMP Detachable Marine Power Cord
110V Exterior Electrical Receptacles
Battery Disconnect

HVAC

4200 BTU Furnace
Seamless One Piece Below Floor Heat Duct
Dual Whisper air A/C system
Insulate in roof A/C system for maximum efficiency
Electric Fireplace

Other Interior Standards

Hydraulic Slide Operating system w/manual override for slide room
Multi-seal slide room w/one piece weatherproof floor pan
All-in-One Master Control Panel with Tank Monitors, Slide and light switches.

Exterior Features

High gloss sidewalls
Aerodynamic style fiberglass front with LED lights
Tight Turn Technology front cap
Large exterior storage fully lined with entertainment center prep
Insulated slam style cargo doors with magnetic hold backs
Exterior speakers
Light at entry step
Extended hitch pin
Large entry assist grab handle
Rear ladder
Universal docking center (U.D.C.) all system hookups in one convenient and concealed compartment
Black tank flush system
Hydraulic selector values for slide outs
Gutters with rain spouts
City water hook up with high pressure fresh tank fill
Exterior shower with hot & cold water
Satellite and antenna connections
Holding tanks pull handles
Winterization valves

Largest Exterior Storage in its Class

Over 145 Cubic feet of storage
Rubber flooring with 3 D-rings
Large insulated slam baggage doors
Unobstructed pass through design
12V lights
1 cable connection / 110V outlet

Safety

Smoke Detectors
Fire Extinguisher
LP Gas & CO2 Detector Inside the Unit
Break Away Switch
All Safety Glass Windows
120 Volt GFI Protected Outlets
Fire Escape Windows
Back-up Camera Prep

Options

Exterior

Slide Toppers Awnings
Dual Pane Frameless Windows
50AMP manual crank power cord reel
6 point Hydraulic LEVELUP – Auto Leveling System
MOR/ryde Hitch
Generator Prep
5.5L Onan Generator (Prep Required)
Yeti Extreme Weather Package

Interior

Induction Cook top
Convection Oven
32” Bedroom TV
22.6 cu ft Residential Refrigerator w/Ice Maker
Queen Bed IPO of King (Queen is standard in 3150RL)
Three Speed, Temperature Control Fan in Bathroom w/Rain Sensor (Ask Dealer for Details)
Theater Seating (Select Models)
Artistic Beam Ceiling
Heat Pump Options (Ask Dealer for Details)
Dyson vacuum

See us for a complete list of features and available options!

All standard features and specifications are subject to change.
