Used 2016 Jayco Jay Feather 23RLSW

Travel Trailer

Stock #25102RD

Heath, OH

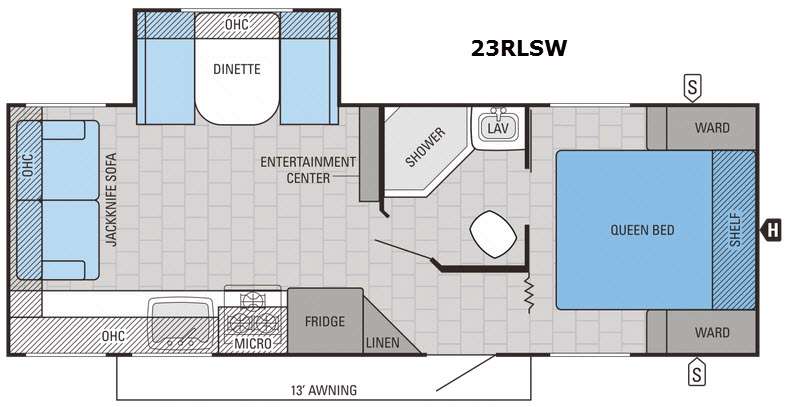

Floorplan - 2016 Jayco Jay Feather 23RLSW

1 of 6

27ft long
4,605 lbs
Sleeps 4

1 slides
Rear Living Area

Front Bedroom

See All Specs

Specifications

Sleeps	4	Slides	1
Length	27 ft 3 in	Ext Width	8 ft
Ext Height	10 ft 8 in	Int Height	6 ft 6 in
Hitch Weight	490 lbs	GVWR	5995 lbs
Dry Weight	4605 lbs	Cargo Capacity	1390 lbs
Fresh Water Capacity	42 gals	Grey Water Capacity	23 gals
Black Water Capacity	23 gals	VIN	1UJBJ0BM2G1JL0100

Features

Standard Features (2016)

Customer Value Package

13,500-BTU air conditioner
Spare tire and cover
Power awning with LED lights
Black tank flush
Outside shower
Exterior TV bracket with 110V electric and cable outlets

Exterior Equipment

Aerodynamic, rounded front profile with front diamond plate
Deluxe graphics package with 2-colored sidewall
TuffShellTM vacuum-bonded, laminated floor, side, rear and front walls including slide walls
Vacuum-bonded, laminated bed platforms with reverse-cambered support (all expandables)
Magnum TrussTM Roof System with one-piece seamless DiFlex II material
Norco NextGen frame with integrated A-Frame
Equa-Flex® suspension (n/a X17Z)
Single axle (X17Z)
Double axle (X19H, X213, 22FQSW, X23B, 23BHM, X23F, 23RBM, 23RLSW, 25BH, X254, 26BHSW)
G20-tinted safety-glass windows
Marine-grade exterior speakers (2)
Black steel wheels with chrome center cap
Radial tires
Standard grease axle with solid-face dust cap
Impact-resistant wheel wells
Slide outs with double seals, barrier sponges and U-channel drip spout (applicable models)
30-amp service
20-pound propane bottle(s) with auto regulator
Outside grill LP quick-connect port
Stabilizer jacks with sand pads
6-gallon gas/electric DSI Atwood water heater
Cable and satellite hook-ups
Water-repellent, scratch-resistant Jayco DuraTekTM vinyl tent material with zipper windows (expandable models)
Powder-coated, painted shepherd’s-hook tent supports (expandable models)
Permanently attached tent-to-bed base design (expandable models)
Self-supporting, 1,100-pound-capacity lockable tent ends (expandable models)

Interior Equipment

Screwed and glued cabinetry
Bead board decorative inserts (select overhead cabinets)
Ball-bearing drawer glides with 75-pound capacity
Crown molding and wood batten strips on ceiling
LED lighting throughout
AM/FM/CD home theater-style DVD player and Bluetooth®
4-, 5- or 6-cubic-foot refrigerator (model specific)
2- or 3-burner cooktop (oven included on 3-burner models)
Microwave
Sink cover (n/a X17Z)
Plywood dinette, bunk and bed bases
4-inch high-density dinette cushions with vinyl backing
Woodgrain accent paneling on select interior walls
Jayco-exclusive pillow-top Denver Mattress with bedspread (excluding bed slides, expandable tent beds and bunks)
Bedroom hanging wardrobes with adjustable shelves (select models)
Jayco-exclusive Denver Mattress bunk mats
110V outlet and corner shelf in fixed bunks
Plastic foot-flush toilet in all models
Bath skylight and roof vent
Solid shower enclosure (23RBM, 23RLSW)
Tub/shower surround

Options

32" LED TV ((X19H, X23F, 22FQSW, 23BHM, 23RBM, 23RLSW, 25BH, 26BHSW)
Canadian Standards
Customer Value Package (Mandatory)
- 13,500-BTU A/C
- Spare tire w/ Cover
- Power Awning
- Black Tank Flush
- Outside Shower
- Exterior TV Bracket w/ 110 and Cable Hookup
Heated Bed Mats (2) (X17Z, X19H, and X23B)
Heated Bed Mats (3) (X23F)
Sink Cover (N/A X17Z)
24" LED TV
Roof Mounted 15,000 BTU A/C
Electric Tongue Jack
Enclosed Underbelly (N/A X17Z)
Electronic Sway Control
Aluminum Rims (2) (X17Z)
Aluminum Rims (4) (N/A X17Z)
Outside Kitchen (25BH and 26BHSW)
Exterior Grill
Roof Ladder (N/A X17Z, X19H, X213, X23B, X23F, X254)

Decor

Meadow
Granola - "Dark Leatherette"
Brick - "Cloth"

See us for a complete list of features and available options!

All features and specifications are subject to change.
