Used 2020 Coachmen RV Catalina Trail Blazer 28THS

Toy Hauler Travel Trailer

Stock #24855 RA

Pataskala, OH

1 of 6

Specifications

Sleeps	6	Slides	1
Length	33 ft 8 in	Ext Width	8 ft
Ext Height	11 ft 9 in	Int Height	6 ft 9 in
Hitch Weight	1126 lbs	GVWR	10500 lbs
Dry Weight	7226 lbs	Cargo Capacity	3274 lbs
Fresh Water Capacity	98 gals	Grey Water Capacity	40 gals
Black Water Capacity	30 gals	Furnace BTU	30000 btu
Number Of Bunks	1	Available Beds	King
Refrigerator Type	Gas/Electric RV	Refrigerator Size	7 cu ft
Cooktop Burners	3	Shower Size	36" x 30"
Number of Awnings	1	Garage Size	15 ft
LP Tank Capacity	20 lbs	Water Heater Capacity	6 gal
Water Heater Type	Gas/Electric DSI	AC BTU	13500 btu
Awning Info	18' Electric with LED Lights	Axle Count	2
Number of LP Tanks	2	Shower Type	Standard
Electrical Service	30 amp	VIN	5ZT2CATB1LX018570

Features

Standard Features (2020)

Construction & Equipment Features

Cambered Structural Steel I-Beam Frame
Full Length Frame E-Coated Outriggers
5/8" Tongue & Groove Plywood Floor Decking
2"x3" Floor Joists on Approximately 12" Centers
4" Floor To Frame Steel Lag Bolts
Enclosed, Fully Sealed Underbelly
3/8" Fully Decked Walk-On Roof (Tandem Axle Models)
Seamless Roof Membrane
Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
5/8" Plywood Under Bed & Dinette Base
81" Interior Height
Easy-Trac Rack and Pinion Slide-Out(s)
R-7 Fiberglass Insulation Throughout
6 Gal. Gas/Electric DSI Water Heater
Water Heater By-Pass Winterization Kit
12V Demand Water Pump
Platinum .024" Aluminum Exterior w/.030 Skirt Metal
Smooth HD Aluminum Radius Front
Polished HD Aluminum Fender Skirts
Spare Tire, Carrier, and Cover
Dexter EZ Lube Axles w/Leaf Spring Suspension
Self Adjusting Brakes
Roto-Cast Holding Tanks
Painted Bumper w/ Drain Hose Carrier and End Caps
30,000 BTU Auto-Ignition Furnace w/Wall Thermostat
13,500 BTU Ducted A/C
30 Amp Elect. Service w/ 100v 45-Amp Power Converter
Aluminum Wheels

Exterior Features

Power Awning w/12V Power Channel and Directional Light Attachment
Electric Tongue Jack
Black Tank Flush
Outside Utility Shower w/ Hands Free Holder
20lb. LP Tank (2) Tandem Axle Models, (1) Single Axle Models
Flush Mount Baggage Doors w/Radius Corners
Diamond Plate Rock Guard
Four Stabilizer Jacks
G20 Tinted Windows
Two Marine Grade Exterior Speakers w/LED Lighting
Friction Hinge Door
Radius Cornered Fiberglass Entry Door
Exterior 110V G.F.C.I Protected Receptacle
Exterior RG-6 Coax Cabling and Satellite Prep
Rain Gutters with Drip Spouts
Radius Entry Steps
XL Swing Arm Grab Handle
Rear View Camera Prep
15' Toy Loc Cable
Lockable Ramp Door Latches
Rear LED Loading Lights
Pets - "Leash Link" Quick Hookup D-Ring

Safety Features

Smoke Alarm
LP/CO Gas Detector
Fire Extinguisher
Fire Escape Windows
Entrance Door Window
Dead-Bolt Lock on Entry Door

Interior Features

Drop Edge Thermofoil Seamless Countertops
Kitchen Power Tower w/ 2 USB Ports & 2 110 Outlets
Bluetooth Stereo and DVD Player w/CD,MP3, USB and AM/FM Radio
39" Flat Screen TV (N/A 26TH)
Swing Arm TV Bracket
In-Wall Mounted Interior Speakers
7 Cu. Ft. Gas/Electric RV Refrigerator
Deep Basin Under-mount Farm Style Sink
Residential Kitchen Faucet w/Pull Down Sprayer
Flush Thermofoil Kitchen Sink Covers (2) (Tandem Axle Models)
Full Length Kitchen Drawer Guides
Salvaged Light Oak Cabinets
All-In-One Monitor Panel System
3 Burner Range w/Flush Glass Top & Blue LED Accent Lights
Slim Line Furrion Range Hood
Silverware Kitchen Drawer
Mosaic Glass Tile Backsplash
Microwave W/Glass Turn Table
Congoleum Woodplank Linoleum Flooring
Residential In-Floor Ducted Heat
LED Interior Lighting
Decorative Sofa Throw Pillows
Hard Valance Window Treatment w/Decorative Lambrequins
Pleated Night Window Shades
Pedestal Thermofoil Dinette Table
Portable Thermofoil Dinette Table
Dinette Storage Under Benches
Easy Access Booth Dinette Storage Doors
Marine Toilet with Foot Flush
ABS Tub/Shower Surround w/Shelves
Skylight Above Tub/Shower
Power Vent Fan in Bathroom
Glass Step-In Shower w/ABS Surround (Per Floorplan)
Medicine Cabinet with Mirror
Bedroom USB Surface Mounts(2)
Solid Master Bedroom Door(s) (Per Floorplan)
Full Length Night Stands with Recepts
Mirrored Wardrobes in Master Bedroom (N/A King Bed Models)
Master Bedroom Overhead Cabinets
Underbed Storage w/Separation from Outside Front Storage
Quilted Designer Bedspread
500LB. Tie Down - 10-12 Ties per Floorplan
Rear Loading Cargo Door w/3000lb. Capacity
Black Out Screen Wall w/Zip Walk-Thru & Windows
Rock Run Reinforced Interior Drive On Wheel Wells (19TH & 26TH Only)
King Bed (28THS)
Reversible Refrigerator Front Panels (Black or Salvaged Light Oak)

Options

15,000 BTU Ducted A/C IPO 13.5 A/C
Enclosed, Fully Sealed Underbelly
SolidStep Entrance Steps IPO Flip-Down Steps (Main Entrance Only)
50 Amp Service w/2nd 13.5 A/C (28THS, 29THS)
50 Amp Service w/2nd A/C Prep (28THS, 29THS)
Two 30lb. LP Bottles w/Cover
Tri-Fold Hide A Bed Sofa
Ramp Door Patio System
Fuel Station w/ 30 Gallon Fuel Tank (28THS Only)
CSA Standards

See us for a complete list of features & available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

We had the best experience
We were looking for a newer camper with a different floor plan. We worked with Andrew from the Heath store. He was very professional, knowledgeable, kind, and patient! We will return to Andrew for future business and would recommend him to our family and friends.

Travis from Lancaster, OH
Relaxation awaitd
Getting away. Seeing the country and relaxing!!!

Scott
Great Experience
My husband and I have been looking for a newer travel trailer so while he was on vacation from work he went to Avalon. He found Jeff the salesman, Jeff was patient and kind most importantly not pushy. Robyn in finance she was also a tremendous help with getting us financed with a payment we liked. On

Sally from Fredericksburg, OH

We are here to help, call us at
740-927-2050 or Contact Us

We are here to help!

740-927-2050
Contact Us
Get Rock Bottom Price!

;

*All RV prices exclude tax, title, registration, documentary, prep and freight fees. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @740-927-2050 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2020 Coachmen RV Catalina Trail Blazer 28THS

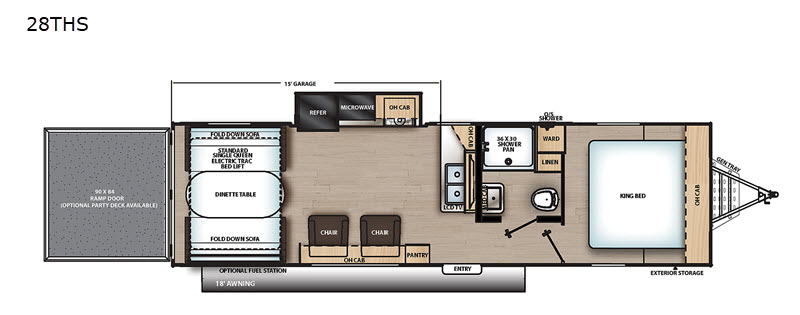

28THS Floorplan
