- True Price: $26,393
- List Price: $29,995
- Discount: $3,602
-
36ft long
-
6,896 lbs
-
Sleeps 10
-
1 slides
-
BunkhouseOutdoor Kitchen

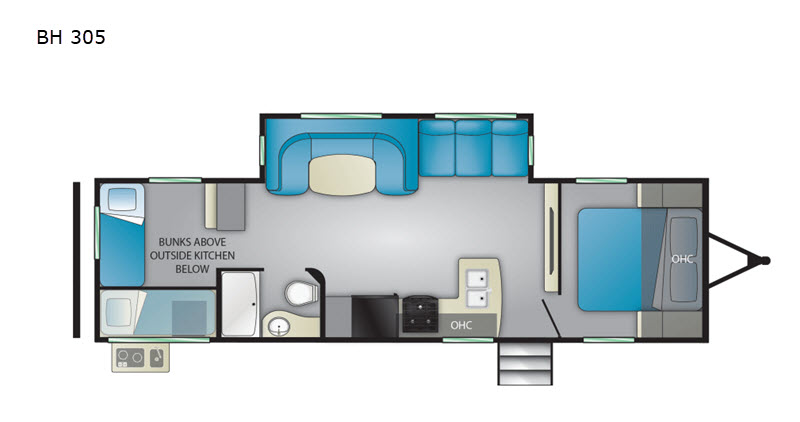

BH 305 Floorplan
Specifications
| Sleeps | 10 | Slides | 1 |
| Length | 35 ft 6 in | Ext Width | 8 ft 1 in |
| Ext Height | 11 ft 2 in | Int Height | 6 ft 8 in |
| Hitch Weight | 732 lbs | GVWR | 9000 lbs |
| Dry Weight | 6896 lbs | Cargo Capacity | 2072 lbs |
| Fresh Water Capacity | 41 gals | Grey Water Capacity | 40 gals |
| Black Water Capacity | 40 gals | Furnace BTU | 30000 btu |
| Number Of Bunks | 4 | Available Beds | Queen |
| Refrigerator Type | Double Door with Freezer | Refrigerator Size | 6 cu ft |
| Cooktop Burners | 3 | Number of Awnings | 1 |
| Axle Weight | 4400 lbs | LP Tank Capacity | 20 lbs |
| Water Heater Capacity | 6 gal | Water Heater Type | Gas/Electric DSI |
| AC BTU | 13500 btu | Awning Info | 20' Power |
| Axle Count | 2 | Number of LP Tanks | 2 |
| Shower Type | Standard | Electrical Service | 30 amp |
| VIN | 5SFPB3524ME439664 |
Description
Heartland Pioneer travel trailer BH 305 highlights:
- Private Bunkhouse
- Outdoor Kitchen
- Large Slide
- Private Bedroom
Wouldn't it be nice to wake up in your own private bedroom at your favorite campsite with your kids sleeping in their own private bunkhouse in the back? This Pioneer travel trailer lets you live that dream! Spend your mornings outside in the fresh air preparing breakfast at the outdoor kitchen while your kids ride around on their bikes, and if you do need to spend the day inside getting some work done, the U-shaped dinette will be the perfect place to do so. You won't feel cramped while you get dinner ready on the indoor three-burner range because the large slide will add extra space to this area.
Blaze new trails and be the first to explore new and exciting destinations with a Heartland Pioneer! You will be able to focus on the fun ahead since Heartland has taken care of all of your needs with the features and amenities that they have included in each Pioneer. From the 13,500 BTU air conditioner that will keep you cool all summer long to the in-floor ducted heat that will eliminate the need for piles of blankets at night, the Pioneer will always be a retreat from outside elements. You will also find security and peace as you travel with the Pioneer because it comes with plenty of standard safety equipment, like the propane, smoke, and carbon monoxide alarms, as well as the dead-bolt lock on the entrance door.
Features
Standard Features (2021)
Top 5 Exterior
- Flip-down Storage Rack – Store items like bikes, wood and coolers, etc.
- King Kong Pass-Thru Storage – 52 cubic feet of storage and LED lights
- Hybrid Aluminum Front Profile – Aerodynamic radius front cage structure for better wind and water deflection, adding strength and reduces tongue weight
- Pioneer Power Pack – Power stabilizer jacks, power tongue jack and power awning
- EZ Camp Package – Black tank flush, outside shower with hot and cold water, LP Quick connect, outside TV hookup and a flip down secure step with XL handle
Additional Exterior Features
- Radial tires with steel rims and E-Z Lube axles
- Screen door
- Rain guttering with extra long drip spouts
- Radius safety glass windows
- Diamond plate stone guard
Top 5 Interior
- Ultimate Kitchen with solid surface countertops and large stainless steel sink with high rise faucets
- Carpet Free RV – Full linoleum on the main floor and no carpet in slide outs.
- Crossflow Windows – Extra large windows that open allowing for cool fresh air
- Pioneer Master Suite including a full size residential queen bed (60”x80”), full length dual wardrobes with integrated lighting and USB charging, CPAP ready storage with full power access
- “Expect More” Standards – 8 cubic foot gas/electric refrigerator with chalk board front, fireplaces (select floorplans), and 50 amp service & second ac prep (select floorplans)
Additional Interior Standard Features
- Convertible sleeper sofas
- Cable TV hook-up with RG6 coax cabling
- AM/FM/MP3 entertainment system with inside and outside speakers
- TV antenna with signal booster
Standard Construction Features
- .024” aluminum exterior metal
- R-7 rated fiberglass insulated sidewall, roof, floor
- 5/8” floor decking
- Roof rafters wood tapered 4-1/2” trusses
- Aerodynamic radius front profile
- Wall studs on 16” centers
- Electric-powered slide room
- Fully walkable roof
- One-piece, seamless rubber roof
- 8’ exterior width
- 2” x 3” longitudinal floor joists
- Cambered structural steel I-beam frame
- Hook-up for city water
- Systems monitor panel
- 12 Volt demand water pump
- 13,500 BTU A/C
- 12 Volt electrical system with deluxe 110 Volt 45 Amp power converter
- DSI hot water heater
- Built-in 30 Amp power cord
- 110 Volt GFCI protected exterior receptacle
- Auto-ignition furnace with wall thermostat
- In-floor ducted heat
- Water heater bypass
Kitchen Standard Features
- Microwave oven with carousel
- Ball bearing drawer guides
- Residential style (50/50) sink
- Double door refrigerator with freezer
Bathroom Standard Features
- Bathroom power vent
Bedroom Standard Features
- Queen bed with innerspring mattress
- TV hookups
- Electric outlets
Standard Safety Equipment
- Propane alarm
- Break-away switch
- Dead-bolt lock on entrance door
- Dual hitch safety chains
- Smoke alarm
- Multiple egress windows
- Fire extinguisher
- Carbon monoxide alarm
Options
- Spare tire and carrier
- Stabilizer jacks (2 pair)
- Electric awning with LED lights
- Nightshades in living area and bedroom
See us for a complete list of features and available options.
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
