Used 2022 Dynamax DX3 37BD

Motor Home Super C - Diesel

Stock #25528RB

Pataskala, OH

1 of 6

39ft long
Sleeps 7
2 slides

Detroit DD8 7.7L Turbo Diesel
375 HP

See All Specs

Specifications

Sleeps	7	Slides	2
Length	39 ft 2 in	Ext Width	8 ft 5 in
Ext Height	12 ft 9 in	Hitch Weight	20000 lbs
GVWR	33000 lbs	Fresh Water Capacity	94 gals
Grey Water Capacity	52 gals	Black Water Capacity	52 gals
Tire Size	22.5"	Fuel Type	Diesel
Miles	20446	Engine	Detroit DD8 7.7L Turbo Diesel
Chassis	Freightliner M2 106	Horsepower	375 hp
Fuel Capacity	100 gals	Wheelbase	268 in
Number Of Bunks	2	Available Beds	King
Torque	1050 ft-lb	Refrigerator Type	Residential with Ice Maker
Refrigerator Size	18 cu ft	Convection Cooking	Yes
Cooktop Burners	3	Number of Awnings	1
Axle Weight Front	12000 lbs	Axle Weight Rear	21000 lbs
LP Tank Capacity	20.3 gals	Water Heater Type	Aqua Hot 400D Diesel
AC BTU	30000 btu	TV Info	LR 39" LED Smart TV, BR 32" LED Smart TV, Ext. 32" LED Smart TV
Awning Info	13' 6" Armless with LED Lights and Wind Sensor	Washer/Dryer Available	Yes
Gross Combined Weight	54000 lbs	Shower Type	Radius
Electrical Service	50 amp	VIN	1FVACXD21NHNC7523

Features

Standard Features (2022)

Chassis

Freightliner® M2 106 Chassis (33,000-lbs. GVWR / 54,000-lbs. GCWR)
Detroit DD8 7.7L Turbo Diesel Engine (375 hp/1,050 lb-ft. of Torque)
Allison® 3200 TRV Six-Speed Automatic Transmission
100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks)
6-Gallon Diesel Exhaust Fluid Tank
Trailer Hitch (20,000 Tow lbs. / 2,000 Tongue lbs.) with 7-Way Round Tow Connection
Weigh Safe® Trailer Hitch Receiver
Brake Controller
Dual-Stage Compression Brake with High/Off/Low Braking Dash Switch
Locking Differential
Airliner® 21,000-lb. Rear Suspension
Manual Air Suspension Dump Valve Switch on the Dash
275-Amp Alternator
Quick Disconnect Fitting with Tire Inflation Kit
Air Brakes with 4-Wheel ABS
Bilstein® Gas-Charged Front Shock Absorbers
Equiflo™ Inboard Fuel System (Dual Supply – Dual Return)
Fuel Filter/Water Separator with Primer Pump
Engine Block Heater
Steel-Reinforced, Aluminum Cab
Chrome Grille and Air Intake Grille
Front and Rear Tires: Michelin® XZE2 275/80R22.5 (14 Ply Radials)
Single Front Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
Dual Rear Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
Valve Extensions
Tire Pressure Monitoring System
4.56 Rear Axle Ratio
Daytime Running Lights
LED Headlights
Tinted Door Glass and Operating Wing Windows
Chassis Battery Shut Off Switch in Cab
Leatherette Driver and Passenger Air Ride Seats with Swivel Bases
Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
Kenwood® 7” Touch Screen Dash Infotainment System with AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Apple® CarPlay™ / Android® Auto™ Functionality, and Garmin® RV Navigation
Air Horn
12V Accessory Ports
One Valve Parking Brake System with Warning Indicator
Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
Momentary Battery Booster Switch for Connecting Chassis and House Batteries
Marker Lights with Separate Interrupter Switch
Low Air Pressure Light and Buzzer
Cruise Control
Adjustable Steering Column
18” Leather-Wrapped Steering Wheel
Hydrographic Woodgrain Cab Accents
Power and Heated Exterior Mirrors
Power Windows and Locks
3-Point Seat Belts
Dual Reading Lights
Two (2) Cup Holders in Dash

Construction

2" Aluminum-Framed, Laminated Sidewalls with Dow® Block Foam Insulation
Composite Exterior Fiberglass (No Exterior Wood)
Aluminum-Framed Floor
Aluminum-Framed Roof Trusses
Crowned, One-Piece Fiberglass Roof
Foil-Lined Ductwork Throughout
Fiberglass Front Cap, Rear Cap, and Front Wing Panels
Automatic, 4-Point Hydraulic Leveling Jacks
Dual-Pane, Dark-Tinted, Frameless Windows
Seamless Rotocast Storage Compartments with LED Lighting
Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches

Exterior

Custom Full Body Paint Package
Premium Cut and Buffed Paint Finish
Front-End Diamond Shield® Paint Protection
Roof-Mounted, Integrated Armless Patio Awning with LED Lighting and Wind Sensor
Aluminum-Wrapped Slideout Toppers
LED Patio Light
Entry Door with Rotary Latch Dark-Tinted, Frameless Window and Integrated Shade
Keyless Entry Touch Pad at Entry Door
Lighted Acrylic Entry Grab Handle
Power Entry Steps
Exterior Wall-Mounted Entertainment Center with 32” LED Smart TV
Front and Rear LED Clearance and Marker Lighting
Rear LED Docking Lights
Polished Stainless Steel Cab Step Treads
Rear “DYNAMAX” Rock Guard
Chrome Exhaust Tip

Interior

Luxury Vinyl Tile with Soft Silence Acoustical Pad Throughout with Non-skid Rubber Steps
Deluxe Carpet with Pad in Select Living Area Slide Rooms
Soft-Touch Padded Vinyl Ceiling
LED Recessed Ceiling Lights
Sprung, Residential Style Dinette Seats with Lift Up Storage
Tri-Fold Straight Sofa
Coordinating Fabric Window Treatments
Day/Night Roller Shades
Hardwood Raised Panel Cabinetry with Five-Piece Drawer Fronts
Hardwood Shaker-Style Passage Doors
Full Extension, Soft-Closing Drawer Guides (where applicable)
Hidden Hinges
39” LED Smart TV (Living Area)
Entertainment Center with Fireplace (37BD Only)
Sound Bar
Thermal, Reflective Front Privacy Shades
USB Charging Ports

Kitchen

18 cu. ft. Residential Refrigerator with Ice Maker
Sealed Gas Range with Glass Cover
Convection Microwave Oven
Solid Surface Countertops with LED Edge Lighting and Backsplash
Double-Bowl Stainless Steel Sink with Solid Surface Covers
Residential Stainless Steel Spring Gooseneck Faucet
Pantry
Under-Cabinet Lighting
MaxxAir® Power Vent with Built-In Rain Cover

Bedroom

King Bed (71" x 78") with Gel-Infused Memory Foam Mattress
Deluxe Padded Headboard
Designer Bedding Package
32" LED Smart TV with Sound Bar
Cedar-Lined Wardrobe
Nightstands with Solid Surface Countertops
LED Reading Lights
USB Charging Ports
Bunk Bed Mattresses (28" x 76") and Privacy Partition (37BD)
Two Bunk CD/DVD Players with Monitors (37BD)

Bathroom

Fiberglass Shower with Skylight
Glass Shower Door
Oxygenics Body Spa® RV Shower Head
Solid Surface Countertop with LED Edge Lighting and Backsplash
Under-Mount Sink with Residential Brushed Nickel Faucet
Porcelain Foot-Flush Toilet (37BD & 37TS)
Porcelain Electronic-Flush Macerator Toilet(s) (34KD & 37RB)
MaxxAir® Power Vent with Built-In Rain Cover

Utilities

Dual 12V 8D AGM Deep-Cycle, Maintenance-Free Batteries
Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
Battery Disconnect
50-Amp Service with Power Cord Reel
3,000W Hybrid Pure Sine Wave Inverter/Charger (3,500 Peak Watts)
8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
Automatic Generator Start
190 Watt Solar Panel with 30 Amp Controller
Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat
Aqua-Hot® 400D Diesel System
20.3-Gallon LP Tank (WC)
LP Quick Connect
Water Filtration System
Exterior Shower in Service Bay
Power Water Hose Reel in Service Bay
Exterior GFCI Receptacle
Winegard® AIR 360+™ Dome Antenna (Wi-Fi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
4x4 HDMI Matrix
Cable TV/Satellite Hookup in Service Bay
Thetford® Sani-Con Turbo Macerator System
Black Tank Flush
Utility Compartment Heated by Aqua-Hot® System
Enclosed Holding Tanks Heated by Aqua-Hot® System
Upgraded 12V On-Demand Water Pump (4 gallons per minute)
Carbon-Monoxide, LP Gas, and Smoke Detectors
Fire Extinguisher
Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)

Options

Cab-Over Bed (Extended Front Cap) with Privacy Curtain
Black Out Package (Cab Entry Steps, Side Mirrors, Rock Guard, Wheels, Headlight Bezels, Exterior Grab Handle Trim, Custom Grill and Vent)
Chrome Appearance Package (Custom Grill and Vent, Dual Chrome Air Horns, Rock Guard, and Baggage Door Handles)
12 cu. ft. 2-Way Refrigerator in place of Standard Refrigerator and Side Pantry
Washer/Dryer
All-Electric Package: Induction Range with Induction Pan Set and Exterior Storage Compartment in Place of LP Tank
Dual, Power Reclining Theater Seats in Place of Dinette (34KD: Three Seats - Only Outer Seats are Powered)
Entertainment Center with 50" LED TV and Fireplace in Place of Loveseat & 39" TV (37TS Only)
Innomax® Adjustable Comfort, Digital Smart Bed
JBL® Premium Cab Sound System - JBL full range/tweeter coaxial speakers, dual voice coil subwoofer, and a high- efficiency, high-performing, 4-channel DSP amplifier, all "Tuned" specifically for the Freightliner M2
Mobileye® Collision Avoidance System
Low-Temp Lithium (600aH) in place of AGM Batteries

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Wife's in love with it
As with the headline, its mainly my wife's baby. So far she absolutely loves it. From my vantage point its a very good camper with a lot of great amenities that make camping enjoyable.

Kenneth
Used Camper
We purchased a used camper ( 2 years old ) from Avalon . After getting it home we noticed an issue with the axle . Avalon had us bring it in to have the service department check it out . We only got the 30 day appliance warranty so the axle was not covered under it . In less than 30 minutes they had

Anonymous
Drives like a Cadillac
The overall room inside and outside storage space . It also has plenty of power. Being our first RV we are very pleased so far

Ronald

We are here to help, call us at
740-927-2050 or Contact Us

We are here to help!

740-927-2050
Contact Us
Check Availability

*All RV prices exclude sales tax, title, registration as well as documentary, freight & prep fees. All payments are with approved credit through dealer lending source. Advertised monthly payment is based on 20% cash down, plus tax, title, registration and fees, at 8.99% APR for 96 months on finance amounts under $10K, at 7.99% APR for 144 months on finance amounts from $10K to $25K, at 7.99% APR for 180 months on finance amounts from $25K to $50K, and at 7.99% APR for 240 months on amounts over $50K. Not all customers will qualify for these rates and terms. Rate and payments are subject to change at any time. Conditions apply. See dealer for details.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2022 Dynamax DX3 37BD

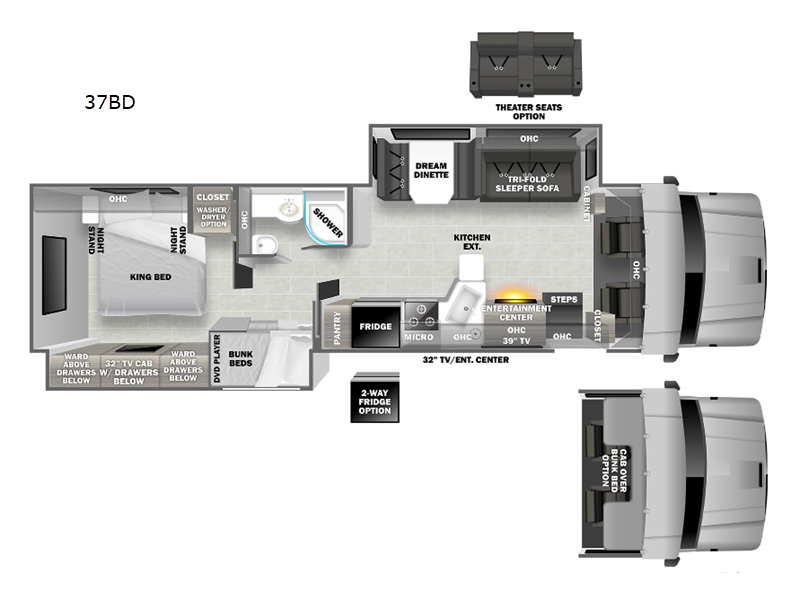

37BD Floorplan
